Duct Bank and Bore Conduit Spacers in Albuquerque, NM
Industries in Albuquerque continue to expand across utility corridors, commercial zones, and infrastructure upgrades tied to long-term regional development. Underground conduit work in these environments depends heavily on layout control early in installation, where spacing decisions directly influence how smoothly later phases move.
Amur Trench supplies duct bank and bore conduit spacers for underground installation projects throughout Albuquerque, NM, and surrounding communities. These components are used in underground installation work where consistent conduit separation is required during concrete encasement or directional drilling. Call or contact us online today to coordinate spacer supply for your upcoming installation schedule.
888-996-8288Underground Installation Challenges in Albuquerque
Underground conduit work often takes place across variable soil conditions and active construction corridors. Once multiple crews, equipment staging, and installation phases overlap, maintaining precise conduit positioning becomes more difficult without reliable spacing control. The most common issues observed during early layout include:
Conduit movement before pour
Shifting during setup before concrete placement
Alignment shifts during pulling
Drift during directional pull-through operations
Crew coordination issues
Misalignment between excavation, layout, and installation timing
Rework from layout errors
Corrections required when spacing is inconsistent at the base stage
How Conduit Spacing Controls Installation Accuracy
Spacing acts as a structural reference point in underground conduit systems, not a finishing detail. Once conduit positions are set, every later stage depends on that layout staying fixed.
In duct bank systems, spacing must hold steady as concrete is placed and cures around multiple conduit runs. Any movement can affect alignment and inspection outcomes.
In directional bore work, conduits must stay separated during pull-through. Pressure changes can shift or compress alignment, impacting continuity from entry to exit points.

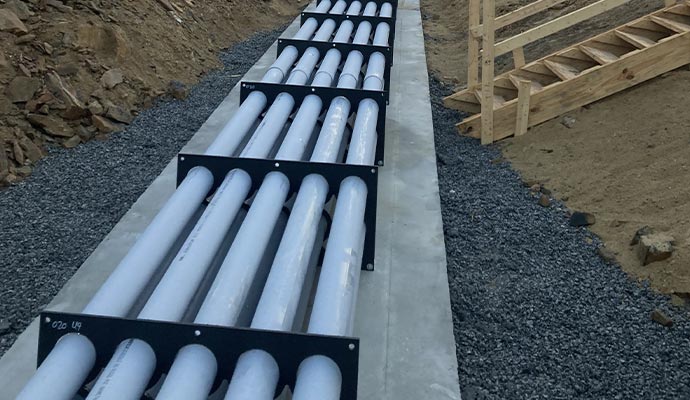

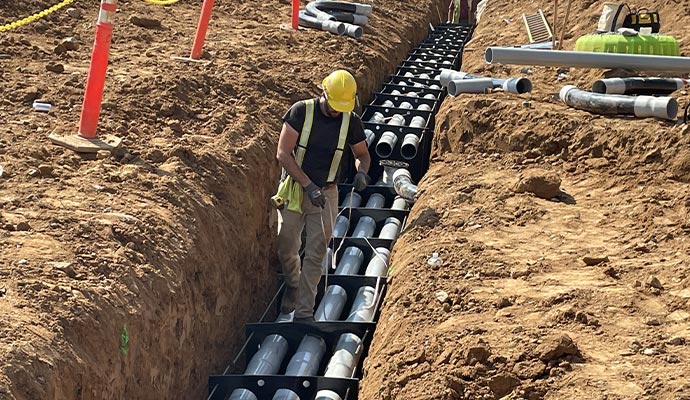

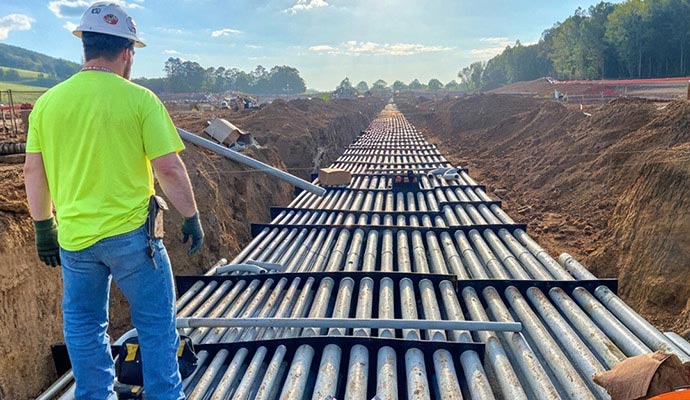

Duct Bank Conduit Spacers for Concrete-Encased Systems
Duct bank installations in Albuquerque typically involve multi-line conduit arrangements supporting utility corridors and commercial infrastructure development. These systems require controlled spacing before concrete placement to preserve alignment throughout the pour and curing stages. Amur Trench duct bank spacers are used to:
- Maintain consistent conduit separation during layout assembly
- Secure positioning before concrete encasement
- Minimize adjustment needs during pre-pour inspections
- Support structured multi-conduit configurations under load
Bore Conduit Spacers for Directional Drilling Work
Directional drilling in Albuquerque is widely used for utility and telecom expansion where surface disruption must be minimized. These installations require conduit systems that maintain separation while moving through subsurface bore paths. Our bore conduit spacers are used to:
- Maintain separation during pull-through operations
- Reduce friction points between conduit runs in the bore channel
- Support stable alignment across long underground paths
- Improve consistency in trenchless installation environments
Conduit Spacer Material and Performance Specifications
| Key Specifications for Duct Bank Conduit Spacers | |
|---|---|
| Density | 0.95–0.96 g/cc |
| Hardness | Shore D 65 |
| Tensile Strength | 3,000 psi |
| Elongation at Break | ≥500% |
| Impact Resistance | Izod Notched 3.0 ft-lb/in |
| Thermal Resistance | Heat deflection up to 165°F, Vicat softening point 268°F, Brittle below -103°F |
| Key Specifications for Bore Conduit Spacers | |
|---|---|
| Density | 0.95–0.96 g/cc |
| Hardness | Shore D 65 |
| Tensile Strength | 3,000 psi |
| Elongation at Break | ≥500% |
| Impact Resistance | Izod Notched 3.0 ft-lb/in, Tensile Impact 100 ft-lb/in² |
| Thermal Resistance | Heat deflection up to 165°F, Vicat softening point 268°F, brittle below -103°F |
| Melt Index | 0.35 g/min |
Conduit Spacer Performance in Underground Environments
Underground installation environments place continuous stress on materials through pressure, impact, and shifting ground conditions. Amur Trench spacers are manufactured using high-density polyethylene (HDPE), selected for stable structural behavior under jobsite conditions. Key features include:
Made in the USA
Durable High Density Polyethylene
Fast Shipping
Safe, Simple & Efficient Installation
Industries that Rely on Our Conduit Spacers
Conduit spacer systems support infrastructure development in multiple industries throughout Albuquerque, NM, where underground conduit organization is required for long-term performance. Main industries we serve:
Why Contractors Use Our Spacers
Contractors working in underground installation environments depend on materials that maintain consistency in varying jobsite conditions and installation stages. Spacer performance directly impacts layout accuracy and installation efficiency. Amur Trench supports field operations with:
- Consistent manufacturing standards across production runs
- Jobsite-ready product design for standard installation methods
- Predictable performance across duct bank and bore applications
- Responsive coordination for project scheduling needs
Call Us to Order Conduit Spacers Before Your Next Installation
Crews working underground in Albuquerque rely on steady spacing to keep installations on track. Amur Trench spacers hold conduit layouts in place from first placement through final pour or pull. Built for demanding jobsite conditions, they help reduce layout shifts, rework, and delays that slow progress.
In utility, telecom, and commercial projects throughout the region, consistent spacing supports smoother execution and better control through every stage of installation work. Keep your project moving without spacing delays. Call us today to order duct bank and bore conduit spacers built for consistent field performance in Albuquerque, Colorado Springs, Austin, Denver, and nearby cities.
888-996-8288Duct Bank and Bore Conduit Spacers Frequently Asked Questions (FAQs)
What materials are used in your conduit spacers?
How are conduit spacers installed on job sites?
Do conduit spacers require special training to use?
