Underground utility systems often share limited corridors with electrical, telecom, and communication networks. Keeping conduit runs properly spaced helps maintain clear routing through installation and supports easier identification during future work.
Amur Trench supplies duct bank and bore conduit spacers designed for projects that require dependable conduit separation across trenching, duct bank construction, and directional drilling applications. Our systems help contractors maintain reliable conduit positioning from installation through final backfill. Call today or contact us online to discuss conduit spacer solutions for your project in Garland, TX, Detroit, Los Angeles, Austin, and surrounding service areas.
888-996-8288
Underground conduit systems pass through multiple stages, including trench placement, directional drilling, and concrete encasement. Each stage requires controlled spacing to preserve the intended routing and reduce unwanted contact between conduit lines.
Our conduit spacers provide a stable framework that supports uniform conduit positioning during installation. This helps create aligned utility pathways that remain easier to track, service, and extend as infrastructure demands grow over time.

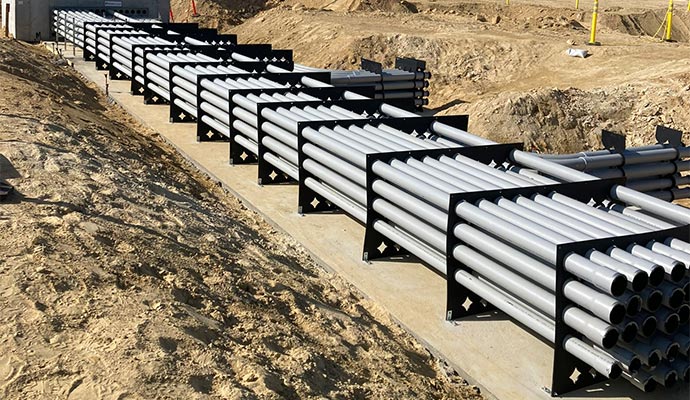

Duct bank conduit spacers are used in concrete-encased installations where multiple conduits must remain evenly separated. They help maintain a uniform grid during pouring and curing, supporting clear identification and future system adjustments.

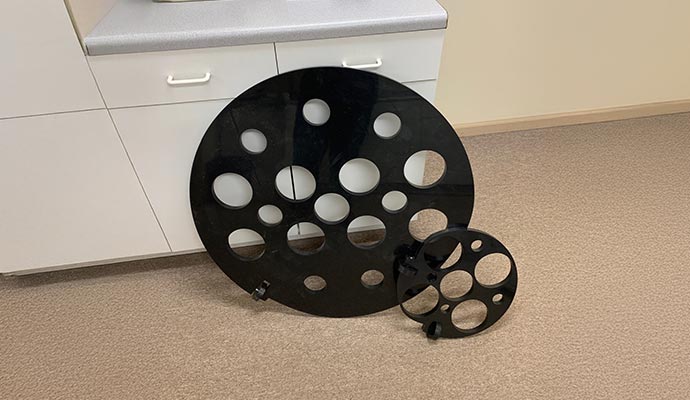

Bore conduit spacers are designed for trenchless installations where conduits are pulled through drilled underground pathways. They help preserve separation during movement, reducing contact and supporting a controlled conduit layout once installation is complete.
Maintaining proper spacing between conduits supports more reliable underground utility systems. It improves accessibility, reduces alignment issues, and helps preserve the intended layout across all installation stages.
Conduit spacer systems play a key role in supporting controlled conduit placement during underground installation work. Each unit is designed to perform reliably across different project conditions while helping crews maintain consistent separation standards.
Made in the USA
Durable High Density Polyethylene
Fast Shipping
Safe, Simple & Efficient Installation
Underground conduit systems are exposed to ongoing pressure, moisture, temperature changes, and construction demands. Spacer performance depends on materials that can maintain their properties under these conditions while supporting reliable conduit separation over time.
| Duct Bank Spacer Specifications | |
|---|---|
| Density | 0.95-0.96 g/cc |
| Hardness | Shore D 65 |
| Tensile Strength | 3,000 psi |
| Elongation at Break | >=500% |
| Impact Resistance | Izod Notched 3.0 ft-lb/in |
| Thermal Resistance | Heat deflection up to 165°F; Vicat softening point 268°F; brittle below -103°F |
| Bore Spacer Specifications | |
|---|---|
| Density | 0.95-0.96 g/cc |
| Hardness | Shore D 65 |
| Tensile Strength | 3,000 psi |
| Elongation at Break | >=500% |
| Impact Resistance | Izod Notched 3.0 ft-lb/in; Tensile Impact 100 ft-lb/in² |
| Thermal Resistance | Heat deflection up to 165°F; Vicat softening point 268°F; brittle below -103°F |
| Melt Index | 0.35 g/min |
Conduit spacers are used across multiple infrastructure sectors where underground systems require clear separation and long-term accessibility. Amur Trench supports several commercial industries in Garland and surrounding regions.
Telecom and Data Networks
Supports structured routing for fiber optic and communication expansion
Utility and Power Systems
Helps organize underground electrical distribution networks
Renewable Energy Projects
Support conduit routing for solar and wind infrastructure installations
Healthcare Facilities
Maintains structured underground pathways for essential building systems
Commercial Developments
Supports multi-line conduit layouts in large-scale construction projects
Reliable conduit spacing starts with products built to perform in demanding underground environments. Amur Trench supplies high-quality duct bank and bore conduit spacers that contractors choose for durable construction, dependable performance, and consistent results across utility, commercial, and infrastructure projects.
Our commitment to product quality helps crews maintain better conduit separation while supporting cleaner underground systems from installation through future access. Choose conduit spacer products built to support cleaner installations and long-term system organization. Contact us today for expert assistance, product recommendations, and dependable spacer solutions for your upcoming underground project in Garland.
