Successful conduit installation depends on stable spacing from the very first stage of layout. When conduit runs shift early in setup, crews often face rework later that slows progress and disrupts sequencing across the jobsite.
In Grand Prairie, Amur Trench duct bank and bore conduit spacers are part of active conduit layout projects across utility and commercial sites in Grand Prairie and surrounding areas. These spacers are used during installation to keep conduit runs organized through each phase of construction. Call or contact us today to get your conduit spacers scheduled for delivery and keep your installation work on track.
888-996-8288
In duct bank installations, conduit positioning must stay consistent while concrete is placed and finished around it. Our duct bank conduit spacers keep conduit rows separated and stable during the pour, reducing movement and helping maintain alignment. They support controlled layouts, prevent shifting, and maintain cleaner multi-line conduit installation throughout the system.

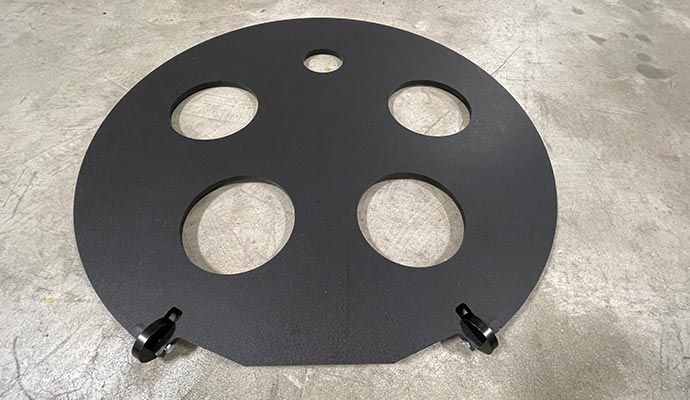

Directional drilling requires conduit runs to stay separated while moving through underground bore paths. Our bore conduit spacers help maintain spacing during pull-through, reducing drift and unwanted contact. They support smoother conduit movement through the bore channel and help maintain steady alignment from entry to exit across the entire installation process.
Our conduit spacers are built to support demanding underground installation work. Each feature is designed to improve durability, handling, and overall jobsite performance across duct bank and bore applications.
Each conduit spacer is produced with defined material properties to support consistent performance in underground installation work. The specifications below highlight structural characteristics of our duct bank and bore conduit spacers used across utility, telecom, and commercial applications.
| Key Specifications for Duct Bank Conduit Spacers | |
|---|---|
| Density | 0.95–0.96 g/cc |
| Hardness | Shore D 65 |
| Tensile Strength | 3,000 psi |
| Elongation at Break | ≥500% |
| Impact Resistance | Izod Notched 3.0 ft-lb/in |
| Thermal Resistance | Heat deflection up to 165°F, Vicat softening point 268°F, Brittle below -103°F |
| Key Specifications for Bore Conduit Spacers | |
|---|---|
| Density | 0.95–0.96 g/cc |
| Hardness | Shore D 65 |
| Tensile Strength | 3,000 psi |
| Elongation at Break | ≥500% |
| Impact Resistance | Izod Notched 3.0 ft-lb/in, Tensile Impact 100 ft-lb/in² |
| Thermal Resistance | Heat deflection up to 165°F, Vicat softening point 268°F, brittle below -103°F |
| Melt Index | 0.35 g/min |
Our conduit spacers play an important role in underground installations where multiple systems must stay properly separated throughout construction. They are used across projects that require controlled conduit placement during layout, concrete encasement, or directional drilling operations. In Grand Prairie, TX, our conduit spaces support multiple major commercial sectors, including:
Telecom and Data
Supports structured conduit networks for reliable communication infrastructure systems
Utility and Power
Maintains organized conduit placement for electrical distribution and systems.
Renewable Energy
Assists conduit routing in solar and wind energy project
Healthcare Facilities
Supports controlled conduit layouts for critical medical infrastructure systems
Commercial Construction
Enables organized conduit installation across large-scale building developments
Jobsite conditions change quickly as equipment moves, soil shifts, and multiple crews operate in the same area. Amur Trench conduit spacers are used in these environments to maintain conduit positioning while installation work continues around them.
Keep your Grand Prairie project moving with conduit spacers ready for your installation schedule. Reach out now to place your order and get materials lined up for upcoming work.
For years, Amur Trench has supported contractors with dependable supplies for all commercial installation projects in active job sites. With fast shipping and precise installation support, projects progress efficiently without unnecessary delays on site. Get the right spacers in place early to avoid delays and keep conduit work organized from layout through completion on your next project. Call us today to schedule an appointment in Grand Prairie, TX, Austin, Detroit, Colorado Springs, and surrounding cities.
888-996-8288
