Duct Bank and Bore Conduit Spacers in Lafayette, LA
Get the right spacing system for your underground project in Lafayette, LA, with Amur Trench duct bank and bore conduit spacers. When multiple utilities share underground routes, consistent alignment helps keep installation controlled from start to finish.
Our spacers keep conduit runs properly spaced during trenching and directional boring, reducing the need for repeated adjustments in the field. Call or contact us today to plan your next project with our durable conduit spacers in Lafayette, LA, and surrounding communities.
888-996-8288

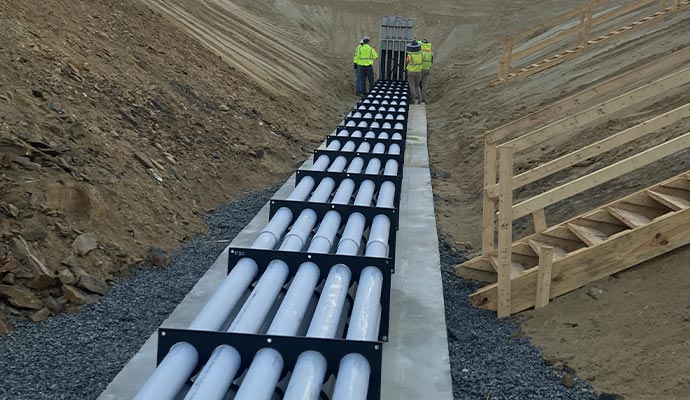

Keeping Conduit Layouts Under Control in Active Job Zones
Construction sites rarely have open space to work with. Utility congestion and multiple trades often make underground routing more complicated than expected. When several conduits run together, spacing becomes the difference between a clean installation and constant adjustments in the trench.
Our conduit spacers create a fixed layout that keeps everything aligned as work moves forward. Instead of making corrections during installation, crews follow a set structure that holds conduit positions in place.
Product Features at a Glance
Made in the USA
Durable High Density Polyethylene
Fast Shipping
Safe, Simple & Efficient Installation
Duct Bank Spacers Installations Built for Ground Stability
Concrete duct banks need spacing components that stay in place while supporting multiple conduits under load. In Lafayette, soil conditions can shift during installation and curing, so consistent spacing becomes important from start to finish. Our duct bank spacers help maintain even separation between conduits, even when surrounded by concrete and compacted backfill.
| Key specifications include: | |
|---|---|
| Density | 0.95-0.96 g/cc |
| Hardness | Shore D 65 |
| Tensile Strength | 3,000 psi |
| Elongation at Break | >=500% |
| Impact Resistance | Izod Notched 3.0 ft-lb/in |
| Thermal Resistance | Heat deflection up to 165°F, Vicat softening point 268°F, brittle below -103°F |
Directional Boring Applications That Demand Precision Spacing
Trenchless installation methods are widely used to reduce surface disruption. During directional drilling, conduits are pulled underground and can face pressure, friction, and movement along the bore path. Bore conduit spacers help keep conduits separated during the pull and prevent them from rubbing against each other. This helps the installation move more smoothly and keeps the conduit bundle properly aligned.
| Key specifications include: | |
|---|---|
| Density | 0.95-0.96 g/cc |
| Hardness | Shore D 65 |
| Tensile Strength | 3,000 psi |
| Elongation at Break | >=500% |
| Impact Resistance | Izod Notched 3.0 ft-lb/in, Tensile Impact 100 ft-lb/in² |
| Thermal Resistance | Heat deflection up to 165°F, Vicat softening point 268°F, brittle below -103°F |
| Melt Index | 0.35 g/min |
Reducing Alignment Issues During Installation
One of the biggest challenges in underground conduit work is keeping runs consistent over long distances. Without spacing control, conduits can drift during placement, especially in uneven soil or high-pressure backfill conditions.
Our spacer products reduce that risk by creating a repeatable spacing pattern across the entire system. This lowers the need for mid-install corrections and helps crews maintain a steady workflow from start to finish.
Industries Relying on Underground Spacing Systems in Lafayette
Several industries in Lafayette depend on our conduit spacers to support organized underground infrastructure as projects continue to expand.
Telecommunications
Supports fiber and data networks that require clear conduit separation for future expansion
Utility and Power
Helps maintain structured electrical systems for stable underground distribution
Energy Projects
Used in renewable and traditional energy work where underground routing must stay aligned
Healthcare Facilities
Supports reliable power and communication systems within complex facility layouts
Commercial Construction
Helps coordinate multiple underground utilities in construction projects without interruptions
Simple Process for Getting Started in Lafayette, LA
Underground projects stay on track when materials are selected and delivered without delay. Amur Trench keeps the process simple, so crews stay focused on installation instead of coordination issues.
- Project Review: Conduit size, spacing, and installation method are checked first
- Spacer Selection: Spacer type is matched to the project layout and requirements
- Delivery Coordination: Materials are shipped to align with active project schedules
- On-Site Placement: Designs allow quick setup and consistent conduit spacing in the field
Build Better Underground Layouts from the Start
Strong underground systems don't come together by chance; they're shaped by how well the layout is planned before installation begins. Clear conduit spacing decisions at the early stage help crews maintain consistency through every phase of the project without reworking alignments in the field.
For projects in Lafayette, Colorado Springs, Dallas, Charlotte, and surrounding regions in the USA, Amur Trench supplies duct bank and bore conduit spacers that support organized installation. Call or contact us online today to get started with the right spacing solution for your next job.
888-996-8288Duct Bank and Bore Conduit Spacers Frequently Asked Questions
Can conduit spacers be used in both trench and boring installations?
What affects pricing for duct bank and bore conduit spacers?
Do conduit spacers require special tools for installation?
