Conduit Movement During Installation
Conduits shift during installation, affecting placement accuracy and workflow efficiency
Duct Bank and Bore Conduit Spacers in Mesa, AZ
Commercial underground installations often face harsh conditions and demanding project requirements. Heat, shifting ground, and tight schedules can complicate conduit placement and impact overall project efficiency.
Amur Trench duct bank and bore conduit spacers bring structure and consistency to the installation process. They allow crews to maintain precise conduit positioning without constant manual adjustments, resulting in smoother workflows, fewer disruptions, and improved installation accuracy. Call us today to find the right conduit spacer solution for your project in Mesa, AZ, Denver, Los Angeles, and nearby areas.
888-996-8288Common Installation Challenges on Job Sites
Underground installations in Mesa present several challenges that can affect both speed and accuracy, particularly during critical phases of construction. Some of the most common issues include
Inconsistent Conduit Spacing
Uneven spacing disrupts layout consistency and impacts overall system performance
Time-Consuming Field Adjustments
Frequent corrections slow progress and increase labor time on the jobsite
Higher Risk in Trenchless Applications
Trenchless installations increase the chance of conduit movement and damage
Alignment Challenges Over Long Runs
Maintaining alignment over long distances becomes difficult without proper support
Consistent Alignment for Smoother Project Execution
Conduit spacers help simplify the entire installation process. Instead of relying on repeated manual corrections, crews can work with a stable and predictable layout.
This improved control reduces the risk of spacing inconsistencies, minimizes delays, and allows teams to stay focused on completing the installation efficiently. With proper positioning maintained throughout the process, projects progress more smoothly and with greater confidence.
Conduit Spacer Options for Mesa Projects

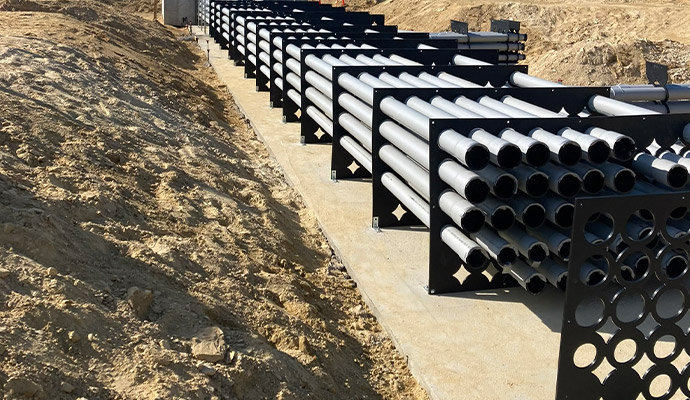

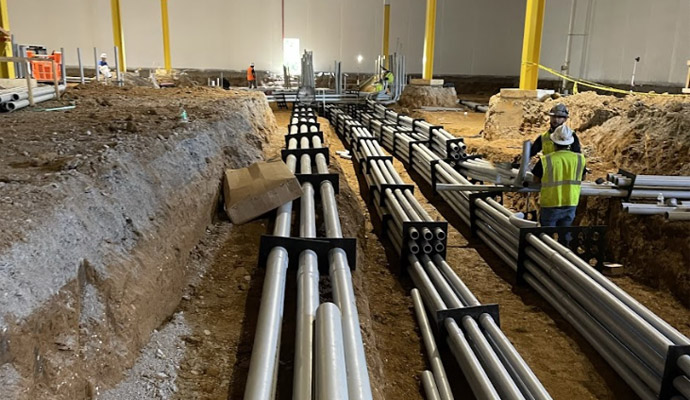

Duct Bank Conduit Spacer
Duct bank spacers are designed for concrete-encased systems, making sure conduits remain evenly separated and properly aligned during pours. By maintaining consistent spacing, they prevent displacement and contribute to a stable final structure.
| Key Specifications for Duct Bank Conduit Spacers | |
|---|---|
| Density | 0.95–0.96 g/cc |
| Hardness | Shore D 65 |
| Tensile Strength | 3,000 psi |
| Elongation at Break | ≥500% |
| Impact Resistance | Izod Notched 3.0 ft-lb/in |
| Thermal Resistance | Heat deflection up to 165°F, Vicat softening point 268°F, Brittle below -103°F |
Bore Conduit Spacers
Bore conduit spacers are engineered for trenchless and directional drilling applications. They guide conduits through underground pathways while minimizing movement, even in uneven or confined conditions. This helps maintain spacing even in uneven or confined conditions.
| Key Specifications for Bore Conduit Spacers | |
|---|---|
| Density | 0.95–0.96 g/cc |
| Hardness | Shore D 65 |
| Tensile Strength | 3,000 psi |
| Elongation at Break | ≥500% |
| Impact Resistance | Izod Notched 3.0 ft-lb/in, Tensile Impact 100 ft-lb/in² |
| Thermal Resistance | Heat deflection up to 165°F, Vicat softening point 268°F, brittle below -103°F |
| Melt Index | 0.35 g/min |
Why Proper Spacing Matters in Underground Systems
Accurate conduit spacing plays an important role in long-term system performance. Poor alignment can create stress on conduits and increase the risk of damage over time.
Using spacers helps maintain proper positioning from the start. This supports a more organized system and reduces the likelihood of issues after installation is complete. Proper spacing also improves access for future maintenance when needed.
Industry Applications in Mesa
Several industries in Mesa utilize Amur Trench spacers. They support projects that require consistent and well-organized conduit systems:
- Utility and Power Systems: Maintains structured layouts for electrical distribution networks
- Telecommunications: Supports clean, efficient pathways for data and communication lines
- Commercial Construction: Enhances organization across large-scale building and infrastructure projects
- Healthcare Facilities: Assists with maintaining consistent layouts for critical systems
- Energy Projects: Provides spacing solutions for modern power and renewable installations
Why Choose Amur Trench for Your Conduit Project
The right materials and support can significantly impact project performance from day one. Amur Trench delivers solutions designed to improve installation efficiency and long-term reliability.
- Built for real jobsite conditions: Engineered to perform in demanding underground environments
- Streamlined installation process: Reduces the need for constant adjustments, saving time and labor
- Consistent layouts: Maintains accurate conduit positioning throughout the system
- Durable and long-lasting performance: Manufactured in the USA with high-quality materials for extended underground use
Get the Right Conduit Spacer Solution in Mesa, AZ
Successful underground projects require more than just quality materials--they require the right partner. At Amur Trench, we work closely with contractors to deliver dependable solutions backed by real-world jobsite expertise.
Our team understands the complexities of underground construction and provides guidance to help you make informed decisions from the planning stage through installation. If you're preparing for a project in Mesa, AZ, we're ready to support your success. Call today or contact us online to speak with an expert and get started.
Duct Bank and Bore Conduit Spacers Frequently Asked Questions
How do I know which conduit spacer configuration fits my project layout?
What factors affect the overall cost of conduit spacers?
How quickly can conduit spacers be delivered after placing an order?
